Product Description

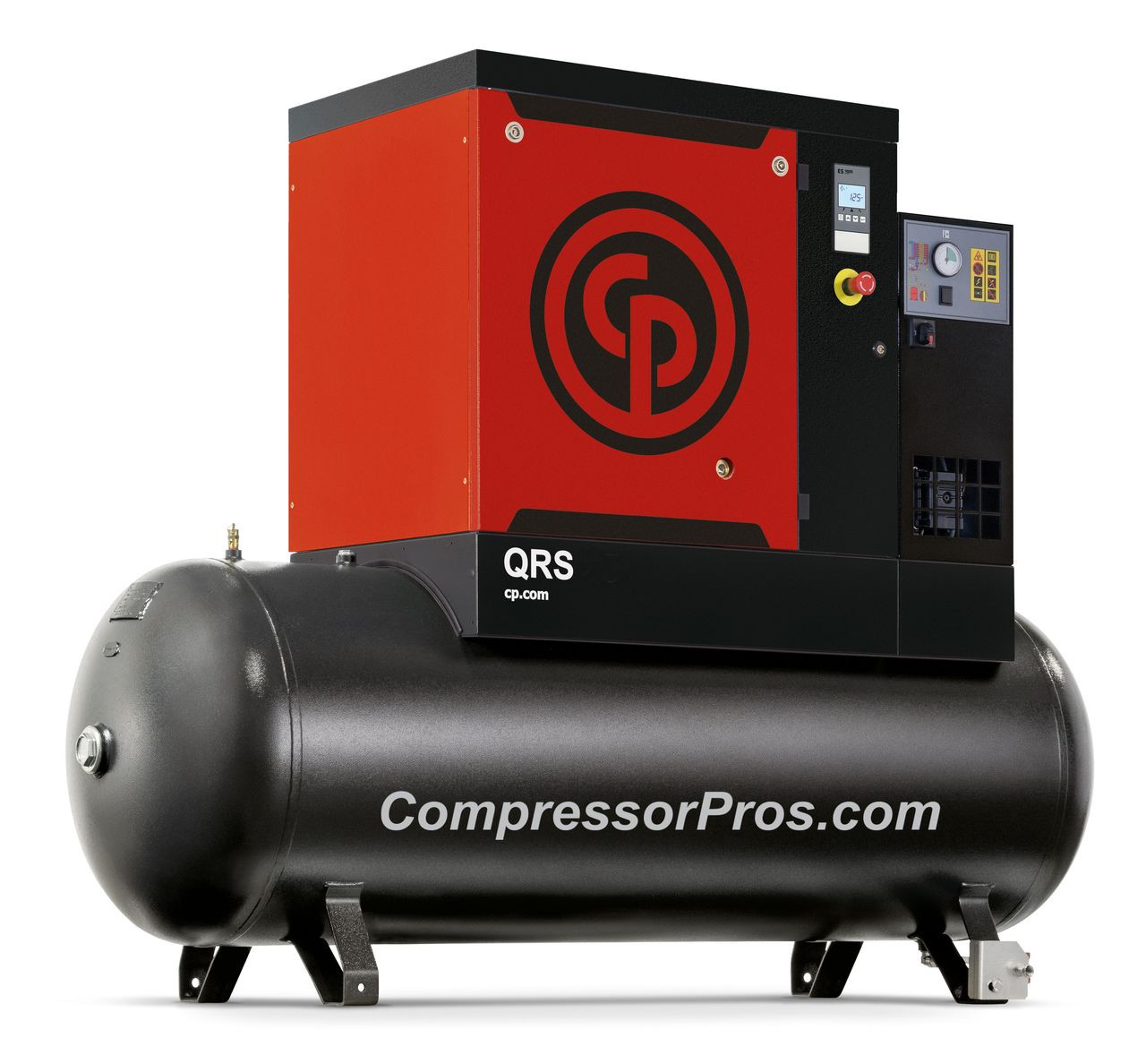

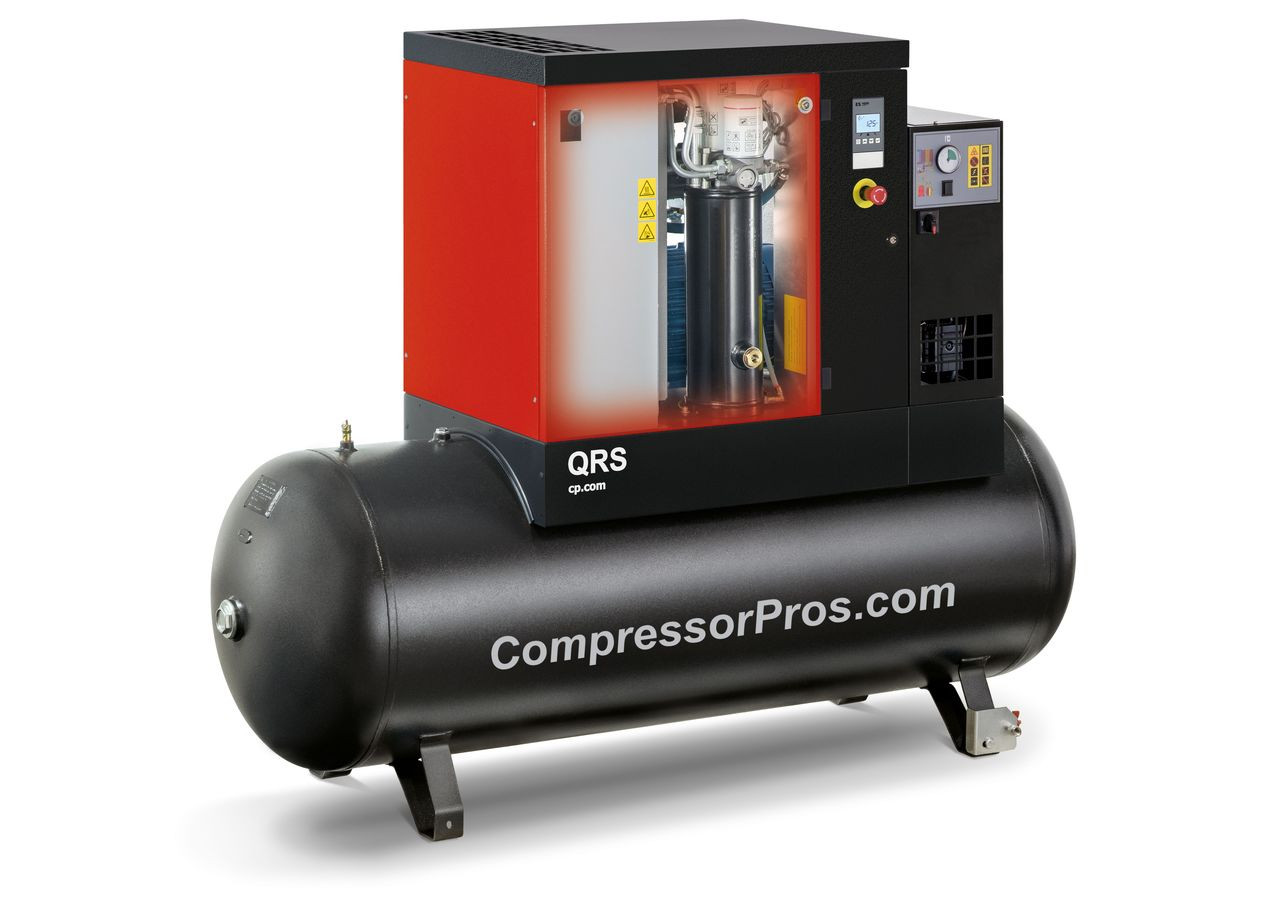

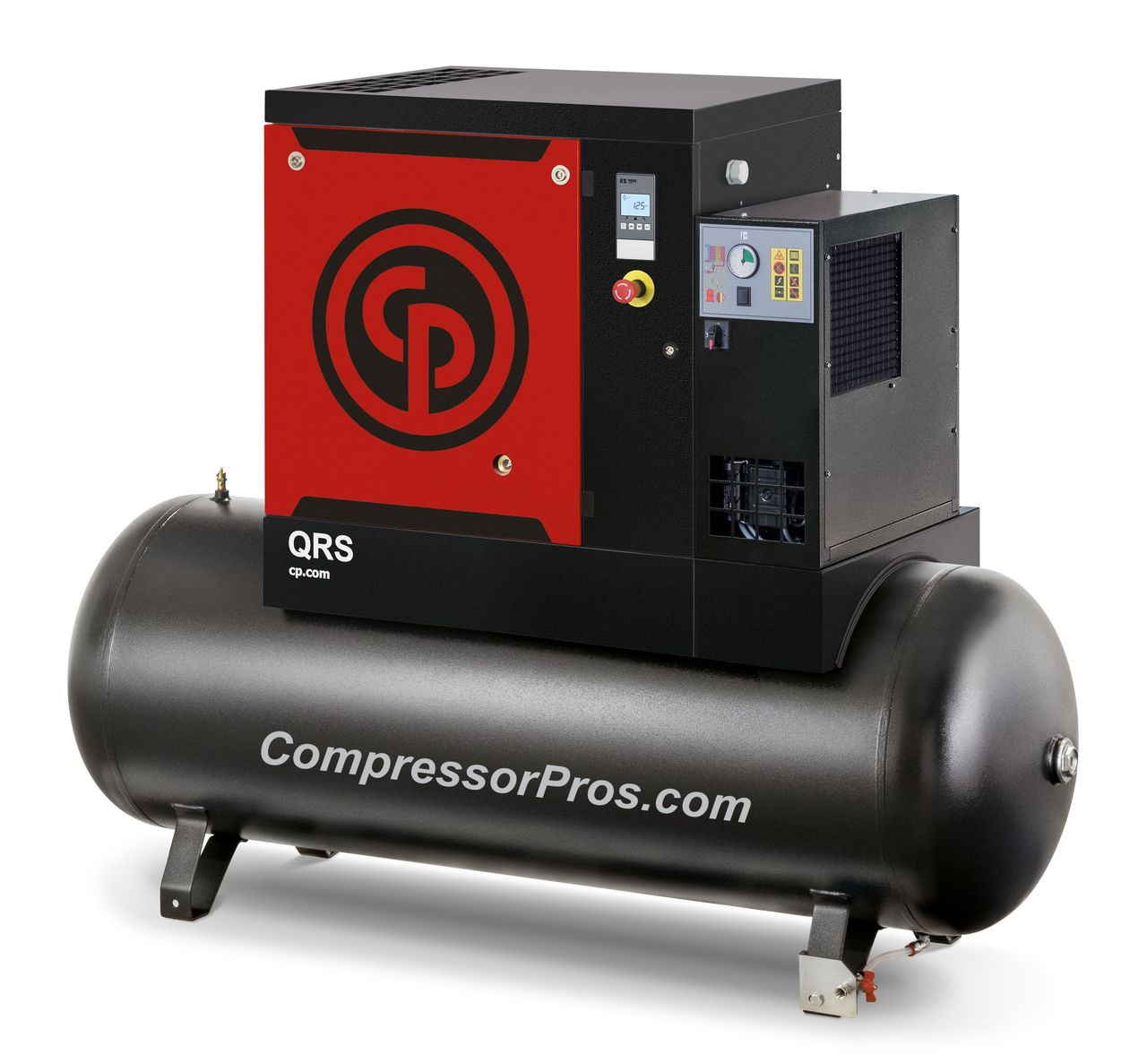

Chicago Pneumatic QRSM20HPD-150 20 HP 208-230/460 Volt Three Phase 132 Gallon Tank Mount Rotary Screw Air Compressor 150 psi with Dryer - QRSM 20 TMD-3
Chicago Pneumatic Rotary Screw Air Compressors are made in Italy by the worlds largest air compressor manufacturer, Atlas Copco. Known worldwide for quality air compressors, you can feel confident that your CP air compressor will do the job you need it to do. Chicago Pneumatic rotary screw compressors are 100% duty, and are extremely quiet. 5 Year Warranty is available. CLICK HERE for details.
QRSM 20 TMD-3Features and Specs
- 20HP
- 208-230/460V 3 Phase TEFC Motor
- 59.9 CFM @ 150 psi
- Includes Dryer
- Unload Pressure 150 psi
- Continuous Operating Capability
- Load/No-Load Operation with Timed Shutdown
- UL, cUL and CSA Approved Control Panel
- NEMA 1 Electrical Protection
- Extremely Quiet 71 dBA
- Mounted on 132 Gallon Horizontal Tank
- Spin-on Oil Filter and Separator
- Vibration Isolated Assembly
- 1 Year Warranty Standard
- 5 Year Warranty available with Factory Authorized Start-up (Typical Fee $350)
Dimensions:77"L x 27"W x 58"H
New ES4000 Basic Controller
The QRS 10-20M is now managed by the ES4000 basic controller, an electronic control unit programmed for energy saving operation with intelligent shutdown. The ES4000 Basic Controller makes operation very simple with warning and service alarms.
Features:
- Icon based display with pressure and temperatue settings/readings
- Running and working hours
- Service Warnings
- Element outlet temperature reading
- Automatic restart after voltage failure
